Command · Engineering
Axosoft
Import items from your Axosoft instance after registering an OAuth app, saving the client credentials, and signing in.
How it works
Axosoft is an import connector with OAuth sign-in. You register an OAuth app in Axosoft, save its credentials in Command, sign in to authorize, and only then run imports.
Before you start
- An Axosoft instance
- Permission to register an OAuth app in Axosoft
- A raia Command project with a destination folder
What you need to make the connection
| Field | Where to get it |
|---|---|
| Instance URL | The address of your Axosoft instance. |
| Client ID | From the OAuth app you register in Axosoft. |
| Client Secret | From the same Axosoft OAuth app. |
Recommended practice: keep credentials private. If one is exposed, revoke or rotate it with the provider before reconnecting.
Setup steps
- 01

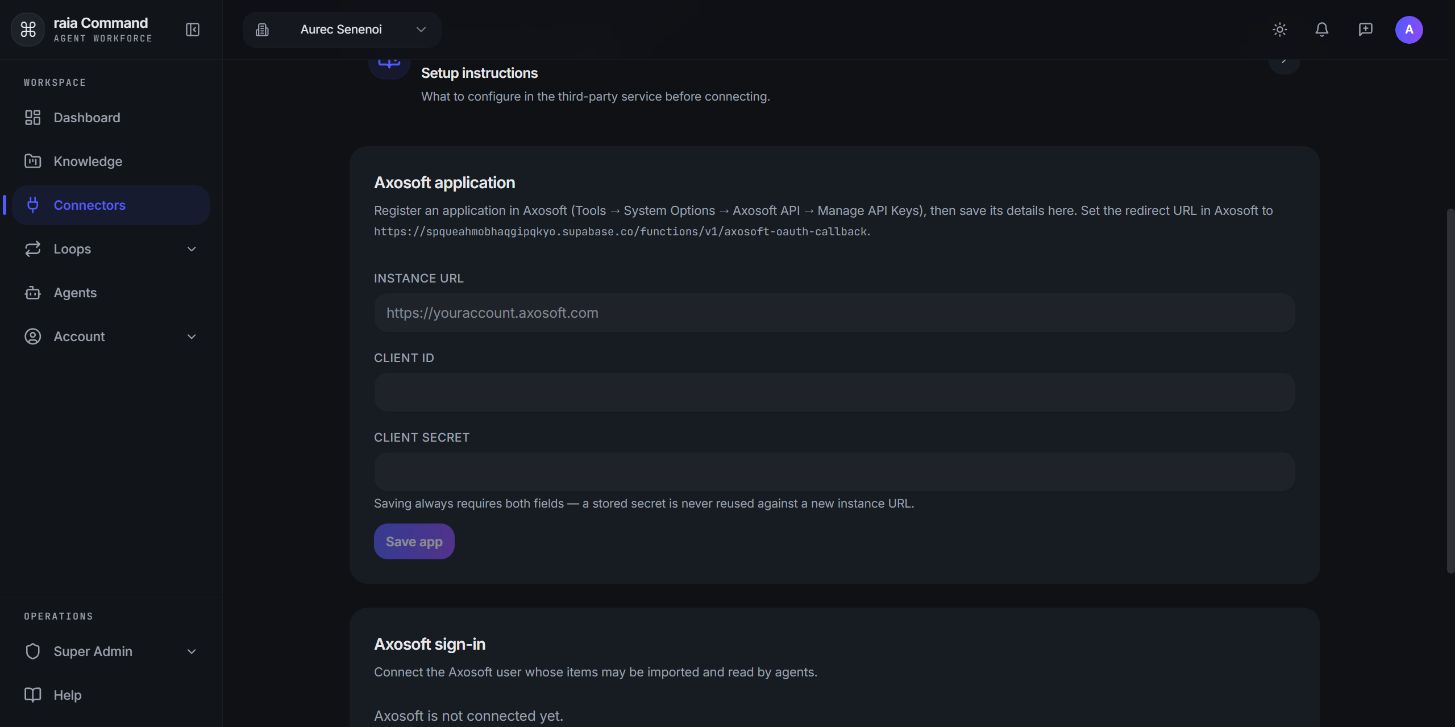

In raia Command, open Connectors → Axosoft. The Axosoft application instructions at the top of the form show the Redirect URI (callback URL) for your project.
The Axosoft application instructions show your project's Redirect URI. Register this exact value in your Axosoft OAuth app — use the URL from your own Command page, not the one in this example image. - Highlight 1: Redirect URI — register this exact value as the redirect URI in your Axosoft OAuth app.
- 02
Register an OAuth app in Axosoft and set its redirect URI to the exact Redirect URI shown on your own Command page — do not copy the URL from any example image. Then copy the app's Client ID and Client Secret.
- 03
Back in Command, enter the Instance URL and Client ID.
Enter your Axosoft Instance URL and the Client ID from your Axosoft OAuth app. - Highlight 1: Instance URL
- Highlight 2: Client ID
- 04
Enter the Client Secret and click Save app.
Enter the Client Secret, then click Save app. Connect Axosoft (OAuth sign-in) comes after the app is saved. - Highlight 1: Client Secret
- Highlight 2: Save app
- 05
Click Connect Axosoft and sign in to authorize the connection.
- 06
Only after the connection exists, click New import, choose the destination project folder, and run the first import.
- 07
Check that the import shows as completed and look at the destination files. If the connection fails, check the exact Redirect URI, the Instance URL, and that both credentials come from the same OAuth app.
Good to know
- Axosoft uses the OAuth2 authorization-code flow. Provider token lifetimes differ from Command's nonexpiring-token request, so do not expect permanent authorization — re-connect if prompted.
